An exterior cane detection rail features a painted one-and-a-half-inch steel tube top rail supported by one-and-a-quarter-inch intermediate steel tube handrail posts spaced at four feet on center, with one-and-a-half-inch painted steel tube posts at the ends. The assembly passes through exterior hardscape and a crushed gravel base per landscape drawings. The post anchors to a six-by-six-by-quarter-inch steel base plate secured with four three-eighths-inch diameter expansion bolts into a concrete slab.

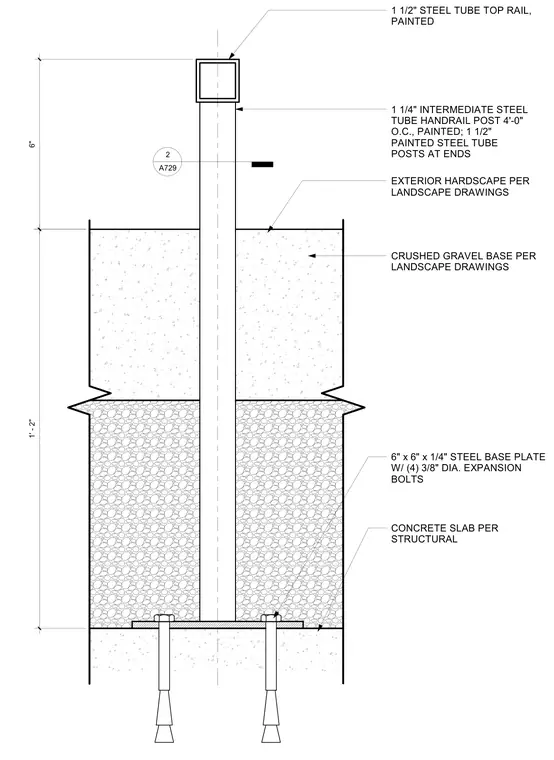

6" 1 1/2" STEEL TUBE TOP RAIL, PAINTED EXTERIOR HARDSCAPE PER LANDSCAPE DRAWINGS 1 1/4" INTERMEDIATE STEEL TUBE HANDRAIL POST 4'-0" O.C., PAINTED; 1 1/2" PAINTED STEEL TUBE POSTS AT ENDS CONCRETE SLAB PER STRUCTURAL CRUSHED GRAVEL BASE PER LANDSCAPE DRAWINGS 1' - 2" 6" x 6" x 1/4" STEEL BASE PLATE W/ (4) 3/8" DIA. EXPANSION BOLTS 2 A729
