An insulated freezer or cooler door sits on a sixteen-gauge galvanized metal sill plate with a heated gasket seal rated for twenty-eight degrees Fahrenheit and below. The door jamb is mounted on an insulated metal panel above the finish floor line. A stair landing platform connects to a structural steel post support adjacent to the concrete stem wall foundation.

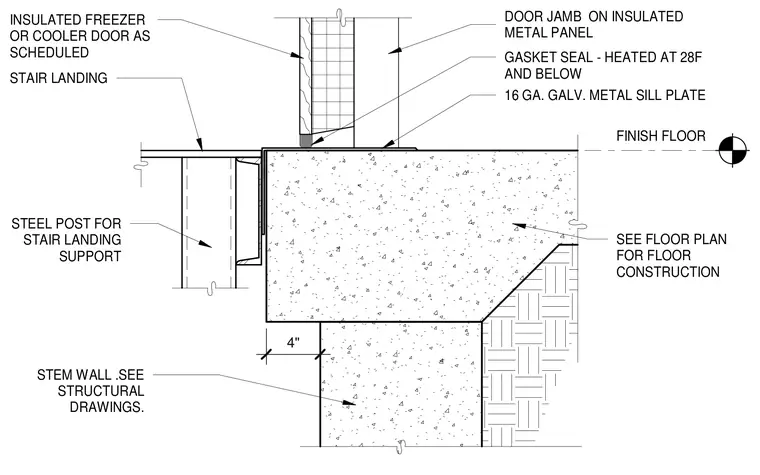

SEE FLOOR PLAN FOR FLOOR CONSTRUCTION DOOR JAMB ON INSULATED METAL PANEL FINISH FLOOR STEEL POST FOR STAIR LANDING SUPPORT STEM WALL .SEE STRUCTURAL DRAWINGS. INSULATED FREEZER OR COOLER DOOR AS SCHEDULED STAIR LANDING 16 GA. GALV. METAL SILL PLATE GASKET SEAL - HEATED AT 28F AND BELOW 4"
