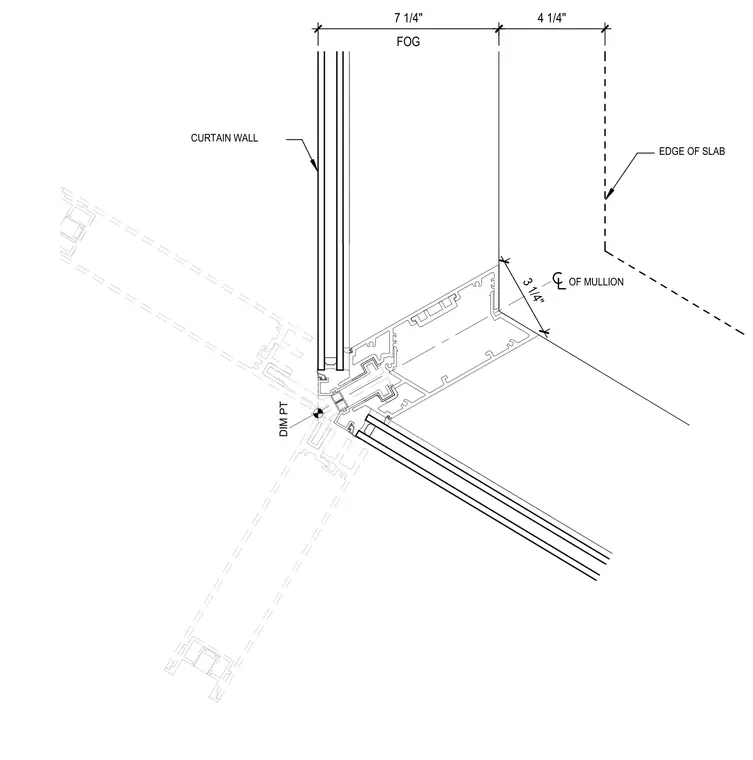

This plan detail shows an angled curtain wall corner with a dimensioned dimension point at the mullion and a 7-1/4 inch dimension to the face of glass. The curtain wall framing aligns with an edge of slab positioned 4-1/4 inches from the mullion center line. A 3-1/4 inch dimension indicates the spacing from the slab edge to the mullion profile. The assembly establishes the geometric relationship between the faceted glazing corner and the structural floor slab.
