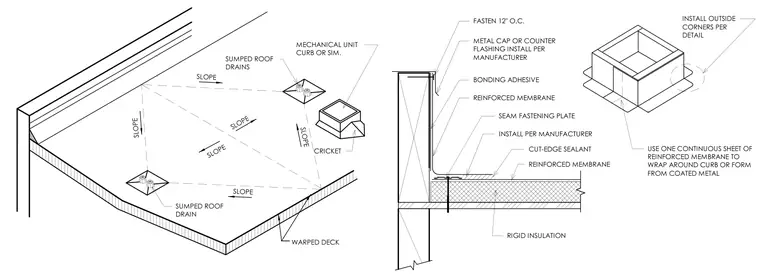

Rigid insulation lays over a warped roof deck that slopes toward sumped roof drains and a mechanical unit curb or cricket. A continuous sheet of reinforced membrane wraps around the curb, secured with seam fastening plates spaced twelve inches on center and bonded with adhesive. A metal cap or counter flashing installs at the top, and cut-edge sealant finishes the membrane edge. Outside corners receive reinforced membrane per manufacturer instructions.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL CRICKET SLOPE SLOPE WARPED DECK SUMPED ROOF DRAIN SLOPE SUMPED ROOF DRAINS MECHANICAL UNIT CURB OR SIM. SLOPE SLOPE SLOPE
