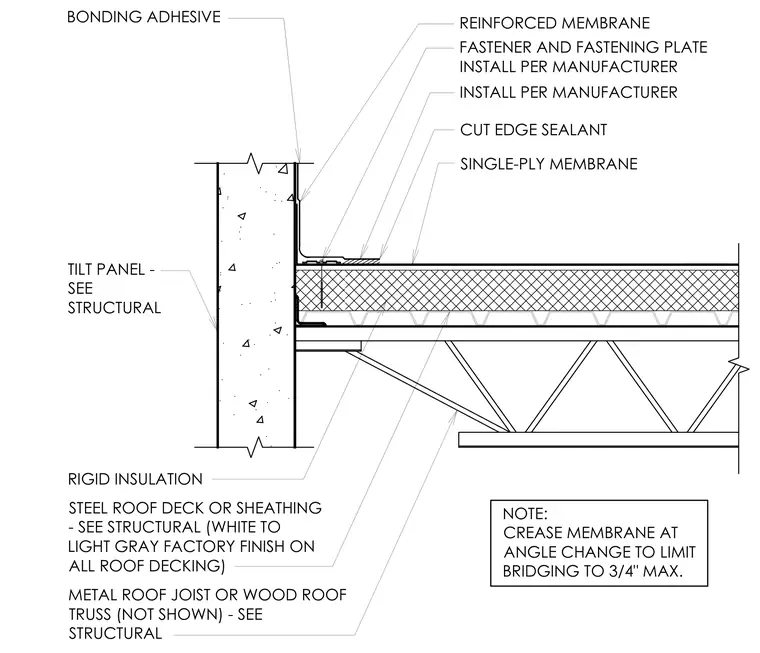

A single-ply roof membrane transitions up a tilt-up concrete wall and is secured with bonding adhesive and a reinforced membrane strip. Fasteners and fastening plates anchor the assembly through the single-ply membrane and rigid insulation into the steel roof deck or sheathing, which is supported by a metal roof joist or wood roof truss. Cut edge sealant is applied at membrane terminations. The membrane is creased at angle changes to limit bridging to a maximum of three-quarters of an inch.
METAL ROOF JOIST OR WOOD ROOF TRUSS (NOT SHOWN) - SEE STRUCTURAL TILT PANEL - SEE STRUCTURAL STEEL ROOF DECK OR SHEATHING - SEE STRUCTURAL (WHITE TO LIGHT GRAY FACTORY FINISH ON ALL ROOF DECKING) NOTE: CREASE MEMBRANE AT ANGLE CHANGE TO LIMIT BRIDGING TO 3/4" MAX. BONDING ADHESIVE FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER INSTALL PER MANUFACTURER CUT EDGE SEALANT RIGID INSULATION SINGLE-PLY MEMBRANE REINFORCED MEMBRANE
