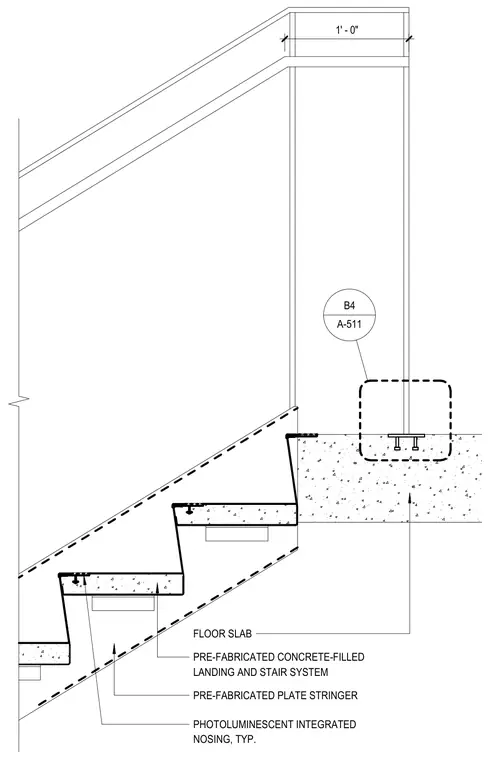

A pre-fabricated concrete-filled landing and stair system features pre-fabricated plate stringers. Each tread incorporates a photoluminescent integrated nosing as a typical installation. The stair assembly interfaces with the adjacent concrete floor slab.
1' - 0" PRE-FABRICATED CONCRETE-FILLED LANDING AND STAIR SYSTEM PRE-FABRICATED PLATE STRINGER PHOTOLUMINESCENT INTEGRATED NOSING, TYP. FLOOR SLAB A-511 B4
