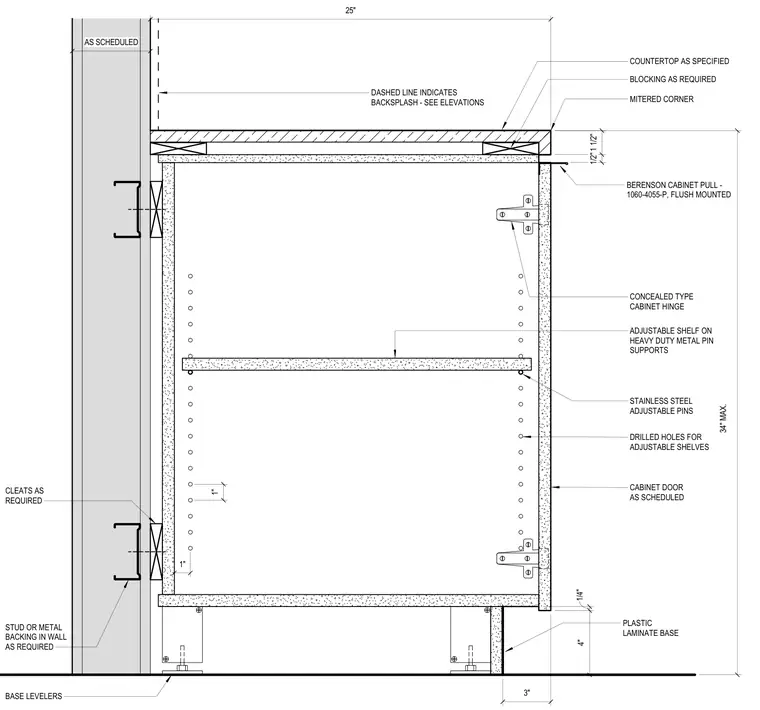

This lower cabinet assembly mounts to a wall constructed with studs or metal backing as required, secured using wood cleats. The casework features a plastic laminate base supported by adjustable levelers resting on the floor. The cabinet body includes drilled holes at one-inch intervals for stainless steel adjustable pins supporting adjustable shelves on heavy-duty metal pin supports. Flush-mounted cabinet doors utilize concealed-type cabinet hinges and feature a Berenson cabinet pull. The top of the cabinet incorporates required blocking and a mitered corner beneath a specified countertop, with a dashed line indicating the backsplash location.
1/2"1 1/2" 1/4" 4" 3" 34" MAX. 25" AS SCHEDULED COUNTERTOP AS SPECIFIED BLOCKING AS REQUIRED BERENSON CABINET PULL - 1060-4055-P, FLUSH MOUNTED CABINET DOOR AS SCHEDULED CLEATS AS REQUIRED STUD OR METAL BACKING IN WALL AS REQUIRED BASE LEVELERS DASHED LINE INDICATES BACKSPLASH - SEE ELEVATIONS CONCEALED TYPE CABINET HINGE 1" 1" ADJUSTABLE SHELF ON HEAVY DUTY METAL PIN SUPPORTS STAINLESS STEEL ADJUSTABLE PINS DRILLED HOLES FOR ADJUSTABLE SHELVES PLASTIC LAMINATE BASE MITERED CORNER
