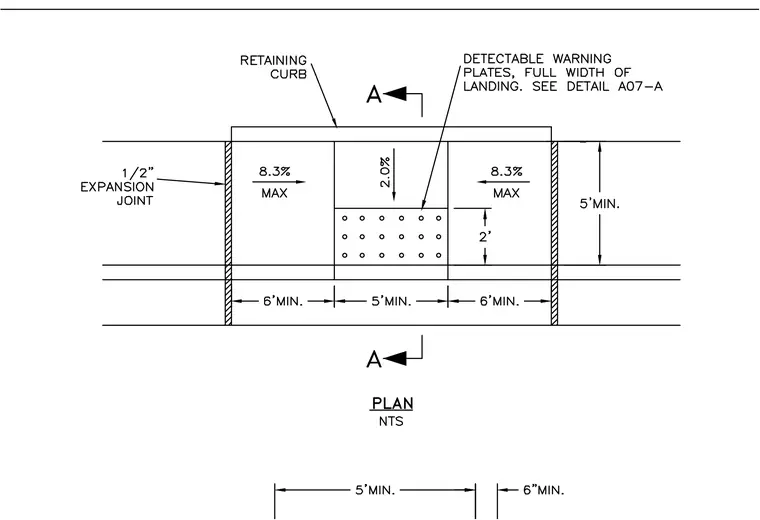

An accessible ramp landing plan features a one-half inch expansion joint on each side, a retaining curb at the rear, and full-width detectable warning plates. The ramp slope is specified at eight point three percent maximum with a cross slope of two percent. Minimum dimensions require a five-foot landing depth, five-foot landing width, and six-foot side approaches, with a section cut reference A-A provided.
