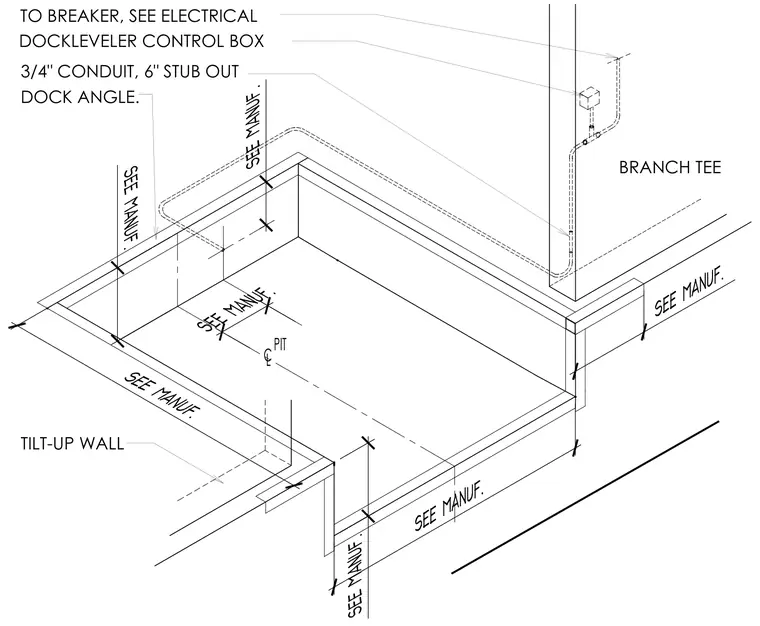

A concrete tilt-up wall dock leveler pit features embedded steel dock angles along the perimeter in an isometric view. A three-quarter-inch electrical conduit stub-out extends six inches to a junction box and branches via a tee fitting to the electrical dock leveler control box. Pit dimensions and manufacturer clearances are referenced to the manufacturer specifications.
3/4" CONDUIT, 6" STUB OUT TO BREAKER, SEE ELECTRICAL DOCKLEVELER CONTROL BOX BRANCH TEE DOCK ANGLE. CL PIT TILT-UP WALL
