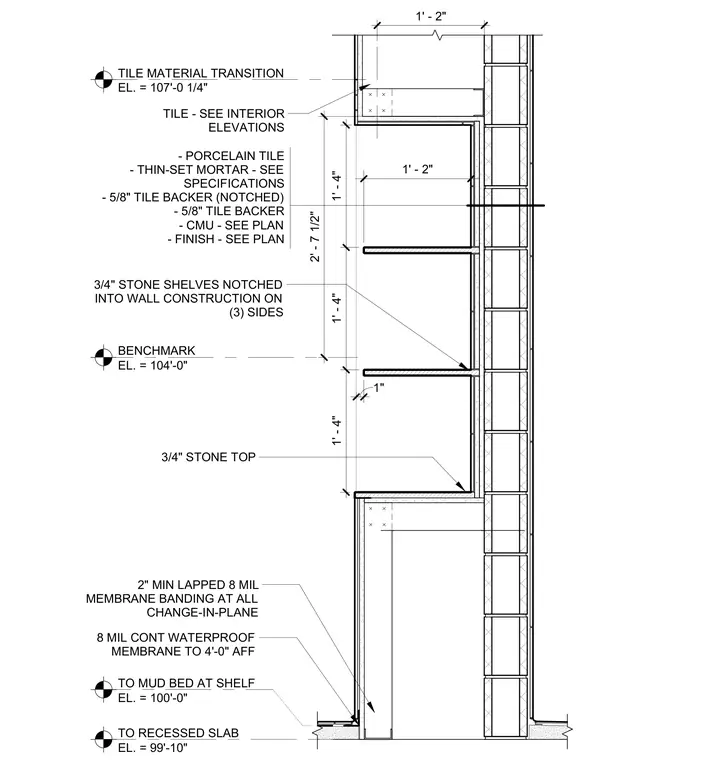

Three-quarter-inch stone shelves are notched into the wall construction on three sides, paired with a three-quarter-inch stone top over a recessed slab elevation of 99'-10" and a mud bed at shelf elevation of 100'-0". The assembly features a concrete masonry unit wall detailed per plan, faced with five-eighths-inch tile backer and porcelain tile adhered with thin-set mortar. An eight-mil continuous waterproof membrane extends to four feet above finished floor, complemented by a two-inch minimum lapped eight-mil membrane banding at all changes in plane. Vertical dimensions space the shelves one foot four inches apart, culminating at a tile material transition elevation of 107'-0 1/4".
BENCHMARK EL. = 104'-0" TILE MATERIAL TRANSITION EL. = 107'-0 1/4" TO MUD BED AT SHELF EL. = 100'-0" TO RECESSED SLAB EL. = 99'-10" - PORCELAIN TILE - THIN-SET MORTAR - SEE SPECIFICATIONS - 5/8" TILE BACKER (NOTCHED) - 5/8" TILE BACKER - CMU - SEE PLAN - FINISH - SEE PLAN 3/4" STONE SHELVES NOTCHED INTO WALL CONSTRUCTION ON (3) SIDES 3/4" STONE TOP 1" 2' - 7 1/2" TILE - SEE INTERIOR ELEVATIONS 1' - 4" 1' - 4" 1' - 4" 8 MIL CONT WATERPROOF MEMBRANE TO 4'-0" AFF 2" MIN LAPPED 8 MIL MEMBRANE BANDING AT ALL CHANGE-IN-PLANE 1' - 2" 1' - 2"
