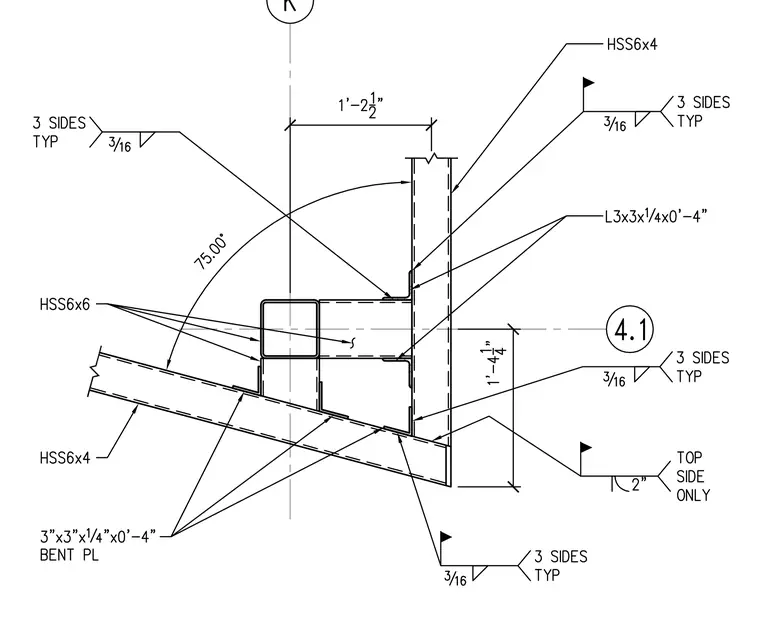

An HSS6x4 vertical member connects to an intersecting HSS6x6 horizontal member and an angled HSS6x4 brace. Connection angles measuring L3x3x1/4x0'-4" and bent plates measuring 3"x3"x1/4"x0'-4" tie the members together. Field welds with a 3/16-inch fillet weld size are specified on three sides typically, with specific top side only welding instructions applied as indicated on the drawing.
