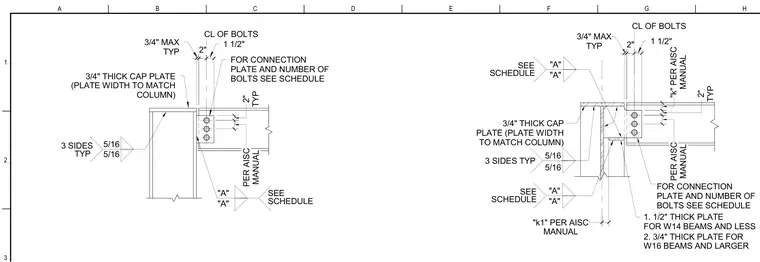

This structural connection detail shows a steel beam framing into a column with a bolted shear tab and a three-quarter-inch thick cap plate whose width matches the column. Fillet welds of five-sixteenth-inch size are specified on three sides typically around the connection plate. Edge distances and bolt spacings follow AISC Manual guidelines, with bolt count and size determined by the structural schedule. A one-half-inch thick plate is used for W14 beams and smaller, while a three-quarter-inch thick plate is used for W16 beams and larger.
1 1/2" 3/4" MAX TYP 2" 2" TYP PER AISC MANUAL CL OF BOLTS "A" "A" SEE SCHEDULE 5/16 3 SIDES TYP 5/16 FOR CONNECTION PLATE AND NUMBER OF BOLTS SEE SCHEDULE 3/4" THICK CAP PLATE (PLATE WIDTH TO MATCH COLUMN) 1 1/2" 2" 3/4" MAX TYP "k1" PER AISC MANUAL 2" TYP PER AISC MANUAL "k" PER AISC MANUAL CL OF BOLTS "A" "A" SEE SCHEDULE "A" "A" SEE SCHEDULE 5/16 3 SIDES TYP 5/16 3/4" THICK CAP PLATE (PLATE WIDTH TO MATCH COLUMN) FOR CONNECTION PLATE AND NUMBER OF BOLTS SEE SCHEDULE 1. 1/2" THICK PLATE FOR W14 BEAMS AND LESS 2. 3/4" THICK PLATE FOR W16 BEAMS AND LARGER 3 2 1 H G F E D C B A
