The lightning rod base is secured to the membrane roof assembly using fasteners per the manufacturer's specifications. The base plate is set over a layer of roofing primer and sealed with a continuous bead of high-grade urethane sealant or manufacturer-approved sealant. A pourable sealer is applied over the base plate and fasteners to ensure a watertight transition to the roofing membrane. The ground wire connects to the lightning rod assembly as specified in the project notes.

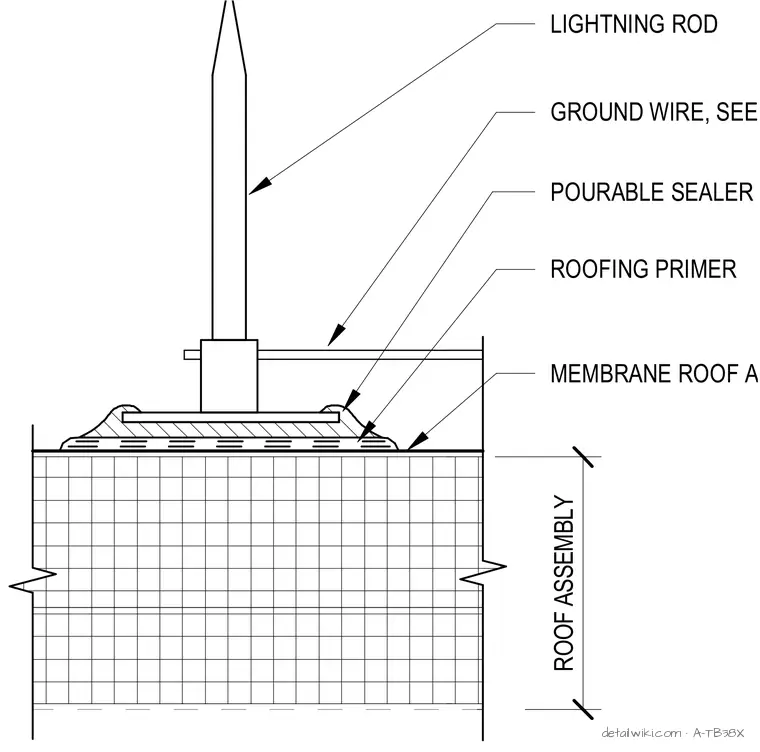

Text on the drawing
LIGHTNING ROD GROUND WIRE, SEE NOTES POURABLE SEALER ROOFING PRIMER MEMBRANE ROOF ASSEMBLY ROOF INSTALLATION LIGHTNING ROD FASTENERS PER MANUFACTURER MANUFACTURER'S SEALANT CONTINUOUS BEAD OF ROOFING SEALANT OR HIGH-GRADE URETHANE SEALANT ROOFING MEMBRANE WHERE OCCURS ROOF ASSEMBLY WALL INSTALLATION GROUND WIRE, SEE NOTES
