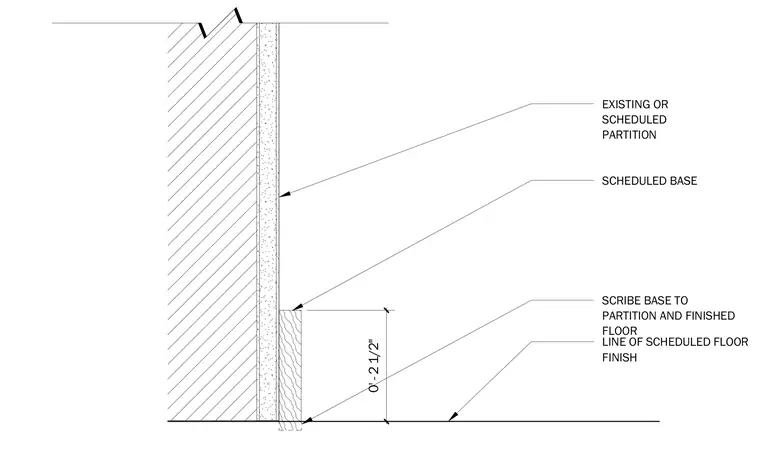

An applied wood base with a height of two and a half inches installs against an existing or scheduled partition wall. The base scribe fits tightly to the partition and meets the line of the scheduled floor finish.
LINE OF SCHEDULED FLOOR FINISH SCHEDULED BASE EXISTING OR SCHEDULED PARTITION 0' - 2 1/2" SCRIBE BASE TO PARTITION AND FINISHED FLOOR
