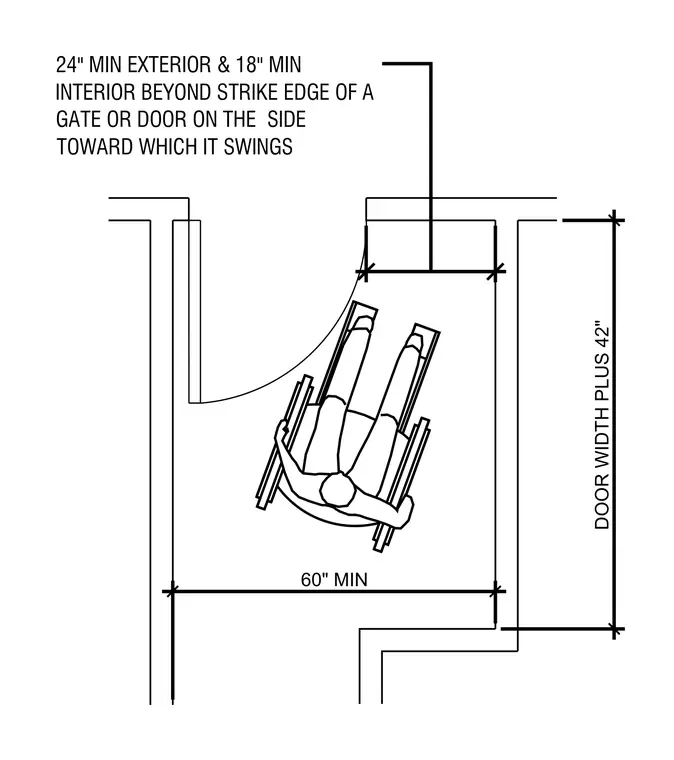

Accessibility clearances at a doorway require a minimum sixty-inch depth with the width dimensioned as the door width plus forty-two inches. The strike edge of a gate or door requires a minimum twenty-four inch clearance exterior and eighteen inch clearance interior on the side toward which it swings.
DOOR WIDTH PLUS 42" 60" MIN 24" MIN EXTERIOR & 18" MIN INTERIOR BEYOND STRIKE EDGE OF A GATE OR DOOR ON THE SIDE TOWARD WHICH IT SWINGS
