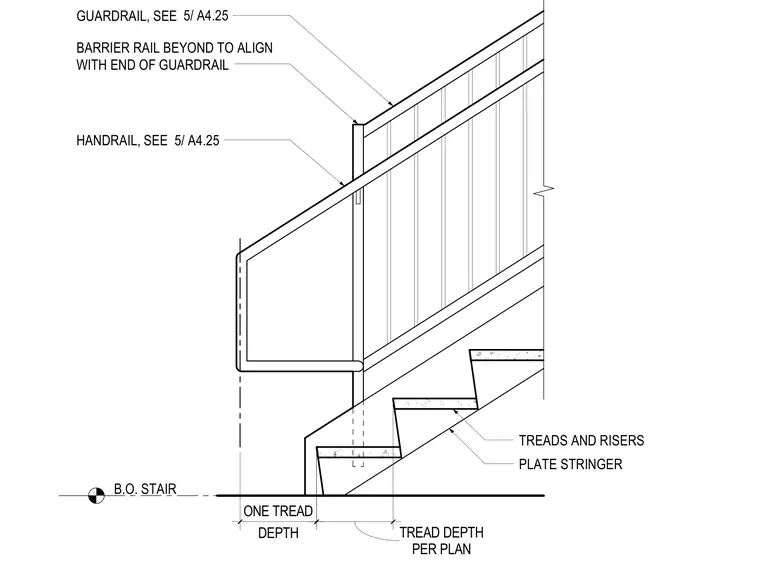

A stair-mounted guardrail and handrail terminate at the bottom of a steel stair featuring plate stringers and treads and risers sized per plan. The guardrail extends down to align with a barrier rail positioned beyond, while the handrail returns toward the stringer above the bottom tread depth. The bottom of the stair is referenced by a level marker at the bottom of the stair.
B.O. STAIR DEPTH ONE TREAD PER PLAN TREAD DEPTH PLATE STRINGER TREADS AND RISERS GUARDRAIL, SEE BARRIER RAIL BEYOND TO ALIGN WITH END OF GUARDRAIL HANDRAIL, SEE 5/ A4.25 5/ A4.25
