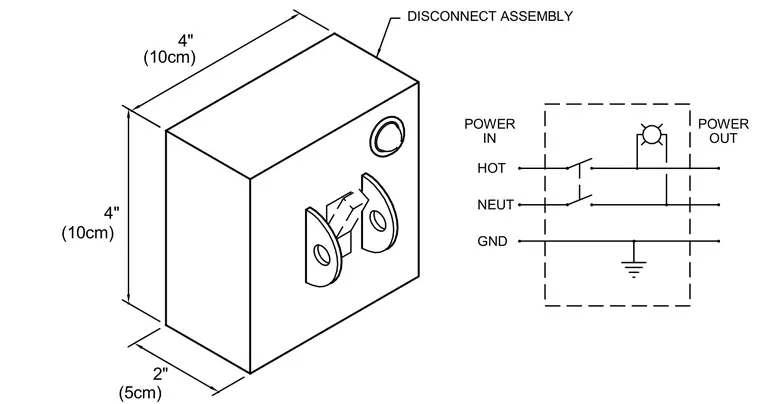

An electrical disconnect assembly features a four-inch by four-inch by two-inch enclosure housing a switch mechanism with hot, neutral, and ground line configurations. Power in and power out connections route through the unit with an integrated schematic diagram detailing the internal hot and neutral switching paths alongside the grounded neutral and ground lines.
