A-TAGPE — Rack Mounted Cat6A Patch Panels Detail

Architectural · A-TAGPE

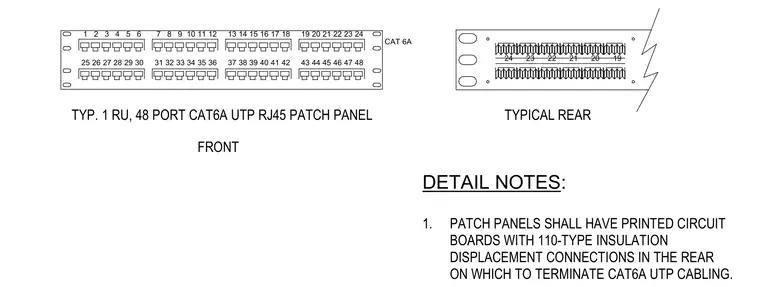

Rack Mounted Cat6A Patch Panels Detail

Units: metric
Sheet: RA-T2.1.2
Discipline: Architectural

Materials

Elements

Connections / Plates Insulation

Text on the drawing

24 23 22 21 20 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CAT 6A TYPICAL REAR FRONT DETAIL NOTES: 1. PATCH PANELS SHALL HAVE PRINTED CIRCUIT BOARDS WITH 110-TYPE INSULATION DISPLACEMENT CONNECTIONS IN THE REAR ON WHICH TO TERMINATE CAT6A UTP CABLING. TYP. 1 RU, 48 PORT CAT6A UTP RJ45 PATCH PANEL

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
