Architectural · A-TAD9A

Fascia Panel Connection at Steel W-Shape Beam

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams

Connections

Welded Connection

About this detail

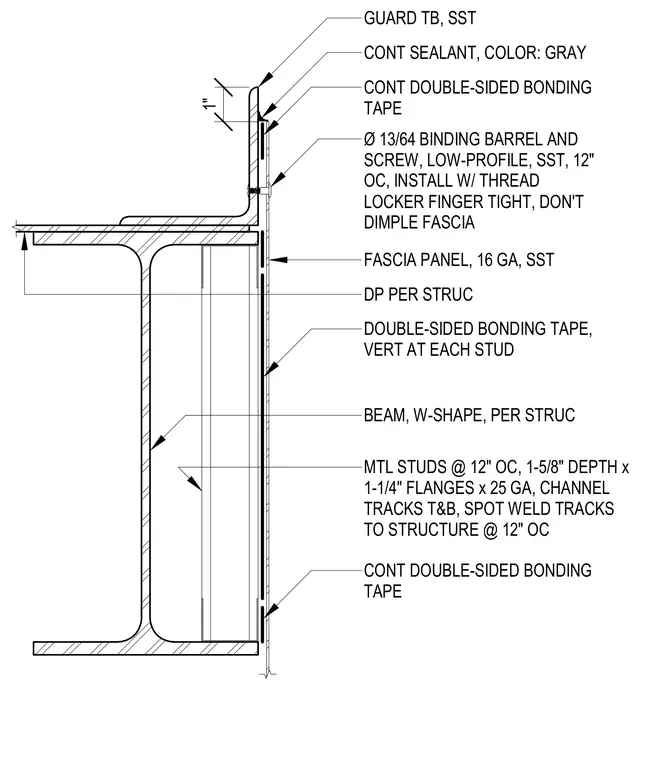

A sixteen-gauge stainless steel fascia panel is secured over light-gauge metal stud framing spaced at twelve inches on center with continuous double-sided bonding tape applied vertically at each stud. The assembly ties back to a structural steel W-shape beam per structural drawings, with top and bottom channel tracks spot welded to the structure at twelve inches on center. A stainless steel guard with a one-inch vertical leg attaches to the fascia using thirteen-sixty-fourth-inch diameter low-profile stainless steel binding barrels and screws spaced at twelve inches on center, installed finger-tight with thread locker without dimpling the fascia. Continuous gray sealant is applied at the top joint between the guard and the fascia panel.
