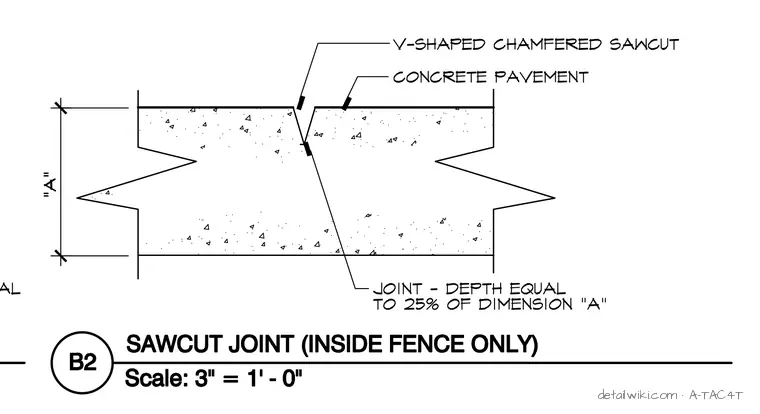

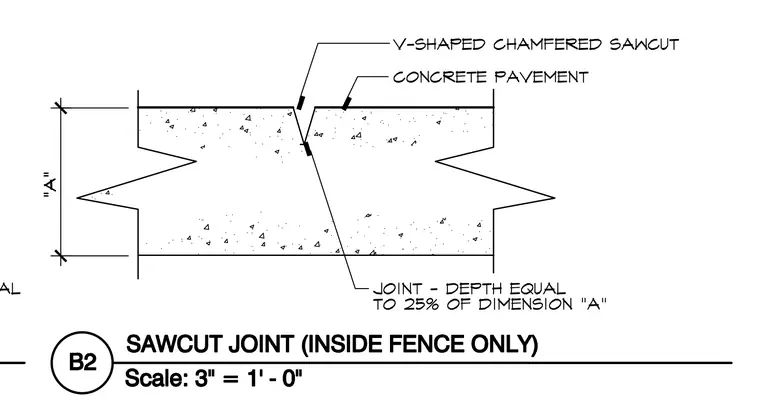

This concrete pavement assembly features a V-shaped chamfered sawcut joint located inside the fence area. The joint depth is set to twenty-five percent of dimension A, which defines the overall thickness of the concrete pavement slab.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
