Mechanical · A-TAAHK

Wall Mounted Fan Coil

Materials

Elements

About this detail

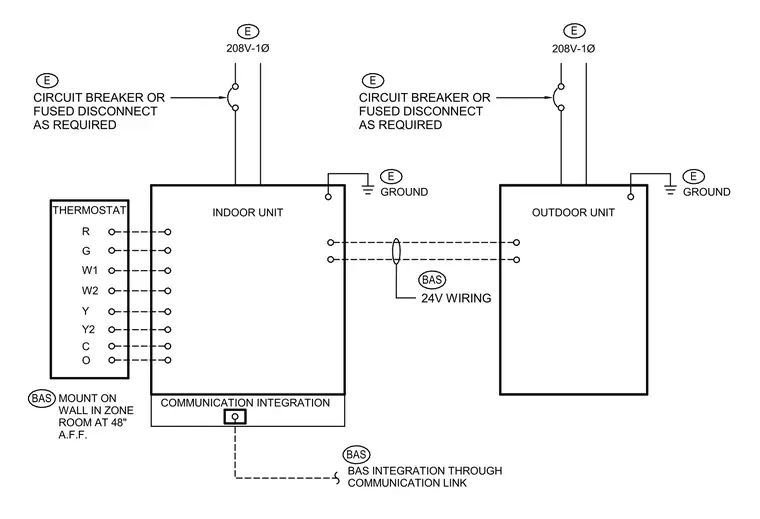

The indoor and outdoor units connect to a 208V single-phase electrical supply through a circuit breaker or fused disconnect as required, with local equipment grounds. Low-voltage 24-volt thermostat wiring connects terminal points R, G, W1, W2, Y, Y2, C, and O between the indoor unit and a thermostat mounted on the wall in the zone room at 48 inches above finished floor. Communication wiring links the indoor and outdoor units with 24-volt building automation system wiring. Building automation system integration is provided through a communication link connected to the indoor unit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
