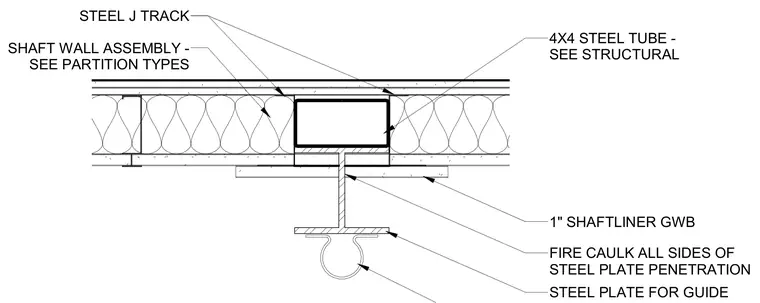

An elevator hoistway shaft wall assembly intersects a four-by-four-inch steel tube, which is sized per structural drawings. The shaft wall assembly includes steel J tracks and one-inch shaftliner gypsum wallboard as specified in partition types. A steel plate serves as a guide for the elevator equipment and penetrates the wall assembly. Fire caulk is applied to all sides of the steel plate penetration.
SHAFT WALL ASSEMBLY - SEE PARTITION TYPES STEEL J TRACK 4X4 STEEL TUBE - SEE STRUCTURAL 1" SHAFTLINER GWB STEEL PLATE FOR GUIDE FIRE CAULK ALL SIDES OF STEEL PLATE PENETRATION
