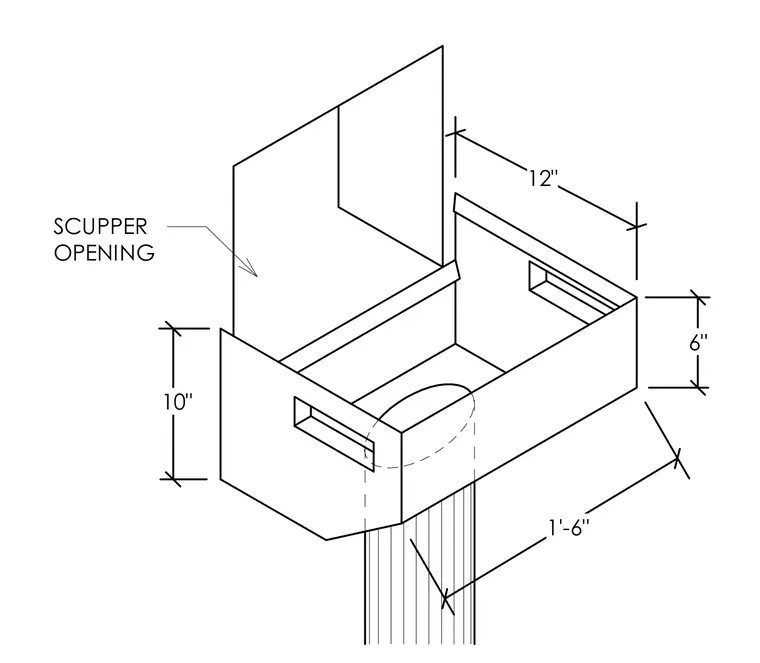

A sheet metal scupper box provides drainage through a parapet wall, connecting to a vertical downspout below. The assembly features a twelve-inch width, six-inch height, ten-inch side height, and a one-foot six-inch dimension at the base.
