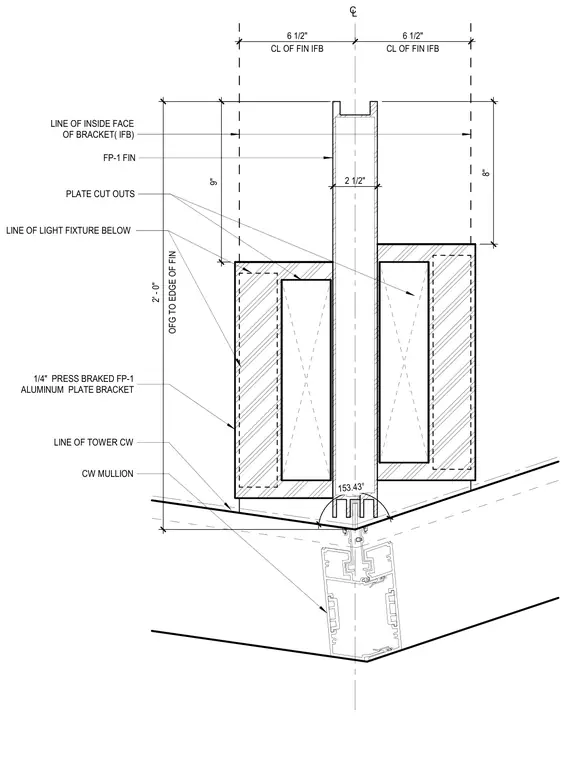

Layout of a crown light valance relative to a curtain wall mullion. The assembly centers on a one-quarter-inch press-braked FP-1 aluminum plate bracket flanked by plate cut-outs and light fixtures positioned below. Dimensions establish the centerline spacing of the inside face of the bracket at six and one-half inches, with the overall fin depth extending two feet to the edge. The curtain wall mullion meets the fin assembly at an angle of 153.43 degrees.
O F G T O E D G E O F F I N 2 ' - 0 " 2 1 / 2 " LINE OF TOWER CW 1/4" PRESS BRAKED FP-1 ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) C L O F F I N I F B 6 1 / 2 " C L O F F I N I F B 6 1 / 2 " CL CW MULLION 1 5 3 . 4 3 ° 8 " 9 "
