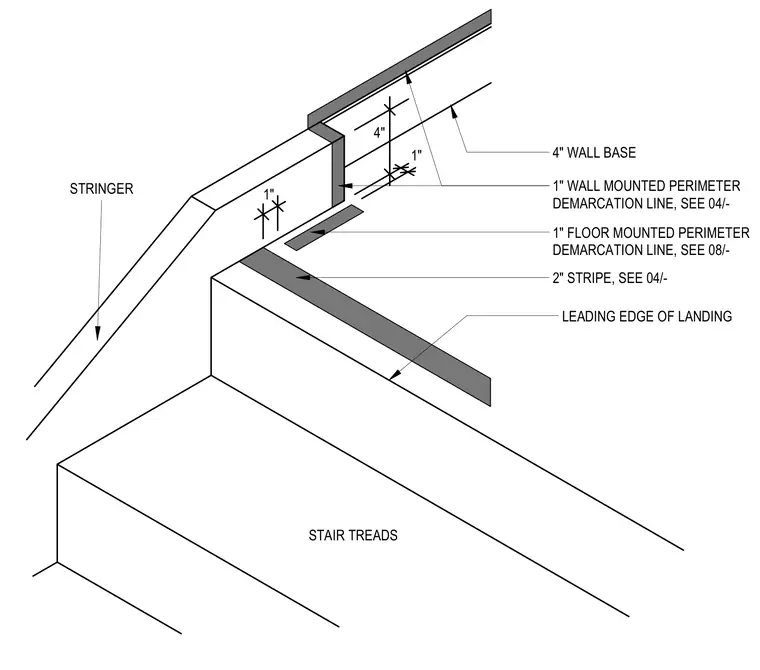

Luminous egress path markings applied to stair treads and adjacent wall surfaces. A four-inch wall base features a one-inch wall-mounted perimeter demarcation line installed one inch above the base. A one-inch floor-mounted perimeter demarcation line runs parallel to the wall, and a two-inch stripe highlights the leading edge of the landing and stair treads adjacent to the stringer.
STRINGER 4" WALL BASE 1" WALL MOUNTED PERIMETER DEMARCATION LINE, SEE 04/- 2" STRIPE, SEE 04/- 1" FLOOR MOUNTED PERIMETER DEMARCATION LINE, SEE 08/- LEADING EDGE OF LANDING STAIR TREADS 1" 4" 1"
