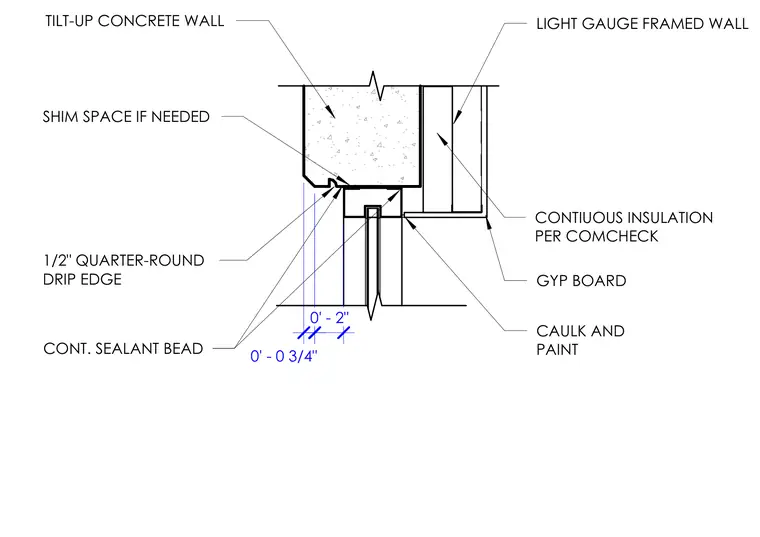

A light gauge framed wall with interior gypsum board and continuous insulation meets the concrete panel at the window head condition. A shim space is provided as needed between the framing and the concrete. A continuous sealant bead and a one-half inch quarter-round drip edge are incorporated at the exterior concrete junction for moisture management.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONTIUOUS INSULATION PER COMCHECK 1/2" QUARTER-ROUND DRIP EDGE 0' - 0 3/4" 0' - 2"
