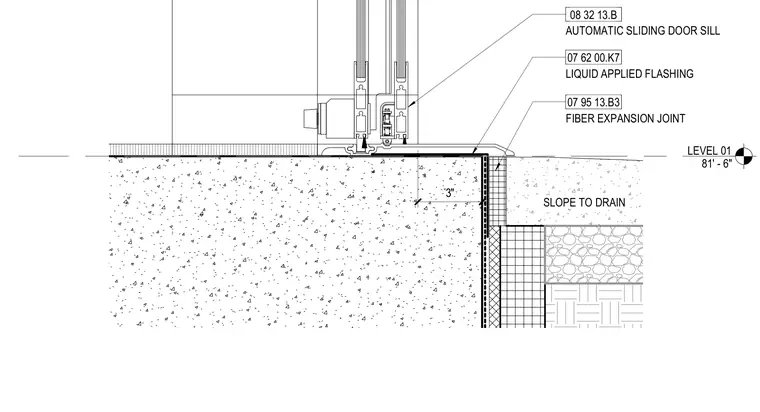

An automatic sliding door sill rests upon a concrete substrate at Level 01, set to elevation 81 feet 6 inches. Liquid applied flashing is installed continuously beneath the sill assembly and sloped to drain away from the opening. A three-inch fiber expansion joint separates the structural slab from the adjacent exterior assembly. The surrounding concrete is detailed with waterproofing layers and sloped exterior paving components.
LEVEL 01 81' - 6" 08 32 13.B AUTOMATIC SLIDING DOOR SILL 07 62 00.K7 LIQUID APPLIED FLASHING SLOPE TO DRAIN 07 95 13.B3 FIBER EXPANSION JOINT 3"
