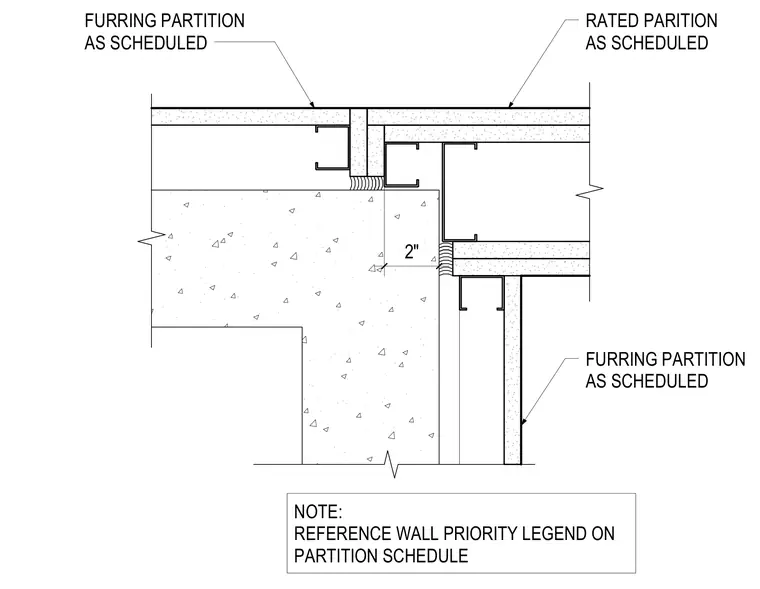

Rated partitions and furring partitions intersect a concrete wall corner with a designated two-inch clearance. Wall assemblies are constructed as scheduled with cold-formed metal framing and gypsum board layers. A reference note directs users to the wall priority legend on the partition schedule for construction sequencing.
RATED PARITION AS SCHEDULED FURRING PARTITION AS SCHEDULED NOTE: REFERENCE WALL PRIORITY LEGEND ON PARTITION SCHEDULE 2" FURRING PARTITION AS SCHEDULED
