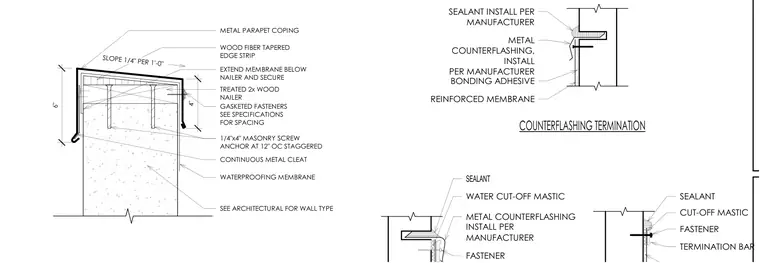

A metal parapet coping seats over a wood fiber tapered edge strip and a treated two-by-four wood nailer anchored to the top of the masonry wall. The waterproofing membrane extends below the nailer and secures behind a continuous metal cleat fastened with one-quarter-inch by four-inch masonry screw anchors spaced at twelve inches on center staggered. Separate counterflashing details illustrate reinforced membrane termination using bonding adhesive, water cut-off mastic, sealant, fasteners, and a termination bar.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION SEALANT WATER CUT-OFF MASTIC METAL COUNTERFLASHING INSTALL PER MANUFACTURER FASTENER SEALANT CUT-OFF MASTIC FASTENER TERMINATION BAR TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
