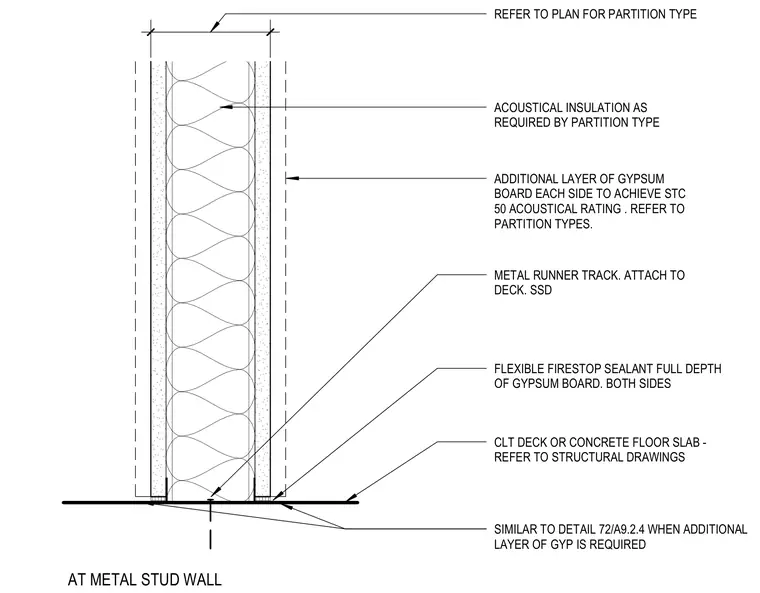

A metal runner track attaches directly to the cross-laminated timber deck or concrete floor slab. Acoustical insulation fills the stud cavity as required by the specific partition type. An additional layer of gypsum board on each side achieves an STC 50 acoustical rating. Flexible firestop sealant spans the full depth of the gypsum board on both sides at the floor junction.
FLEXIBLE FIRESTOP SEALANT FULL DEPTH OF GYPSUM BOARD. BOTH SIDES REFER TO PLAN FOR PARTITION TYPE ADDITIONAL LAYER OF GYPSUM BOARD EACH SIDE TO ACHIEVE STC 50 ACOUSTICAL RATING . REFER TO PARTITION TYPES. METAL RUNNER TRACK. ATTACH TO DECK. SSD ACOUSTICAL INSULATION AS REQUIRED BY PARTITION TYPE CLT DECK OR CONCRETE FLOOR SLAB - REFER TO STRUCTURAL DRAWINGS AT METAL STUD WALL SIMILAR TO DETAIL 72/A9.2.4 WHEN ADDITIONAL LAYER OF GYP IS REQUIRED
