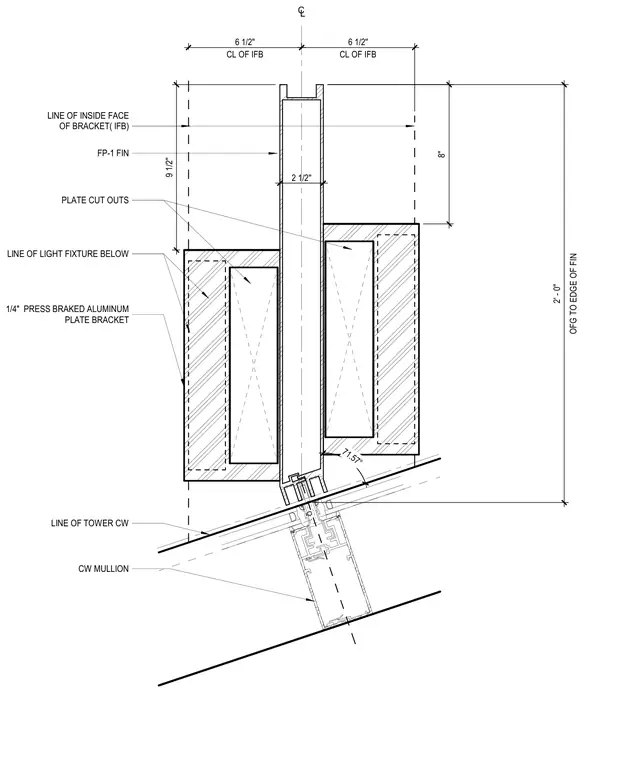

A crown light valance assembly is positioned at a curtain wall mullion. The connection features a 1/4" press-braked aluminum plate bracket and an FP-1 fin with plate cutouts aligning with a light fixture below. Dimensions reference the inside face of the bracket, curtain wall line, and the edge of the fin at a 71.57 degree angle.
LINE OF TOWER CW 1/4" PRESS BRAKED ALUMINUM PLATE BRACKET LINE OF LIGHT FIXTURE BELOW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) CW MULLION O F G T O E D G E O F F I N 2 ' - 0 " 7 1 . 5 7 ° C L O F I F B 6 1 / 2 " 2 1 / 2 " C L O F I F B 6 1 / 2 " CL 8 " 9 1 / 2 "
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
