Structural · A-T9BW9

Interior Wall Support at Structural Steel Framing

Materials

Steel Metal (misc.)

Elements

Walls Arches

Connections

Bolted Connection

About this detail

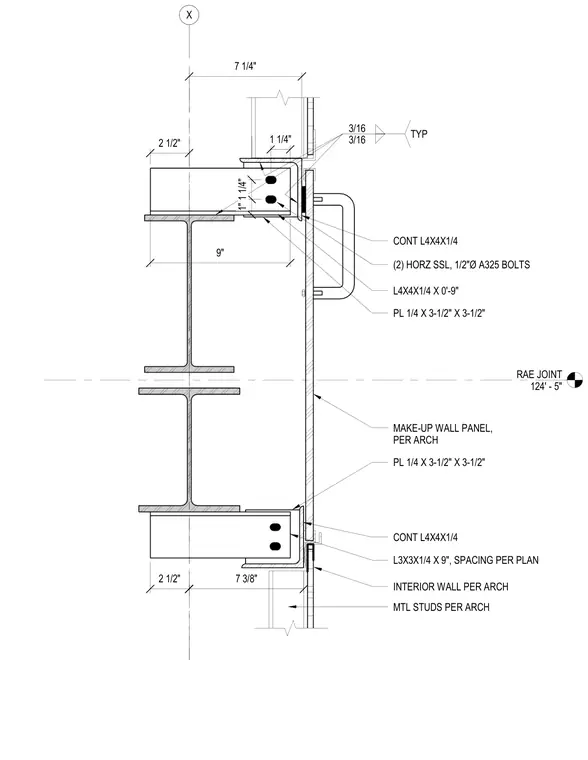

An interior wall assembly connects to structural steel framing using continuous continuous angles, plates, and bolted connections. A continuous L4x4x1/4 angle and plate measuring one-quarter inch by three-and-a-half inches by three-and-a-half inches secure the wall panel make-up, which is detailed per architectural drawings. Two horizontal slotted holes with one-half inch diameter A325 bolts fasten the framing components. An additional L3x3x1/4 angle measuring nine inches in length provides lower support at a spacing per plan. Metal studs and interior wall finishes complete the architectural partition interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
