Architectural · A-T97BG

Curtain Wall and Outrigger Mullion Details at West Column Grid

Materials

Steel

Elements

Columns Beams Walls Windows Curtain Walls Parapets Ceilings Bracing Connections / Plates Roof / Floor Openings

Connections

HSS Connection Welded Connection

About this detail

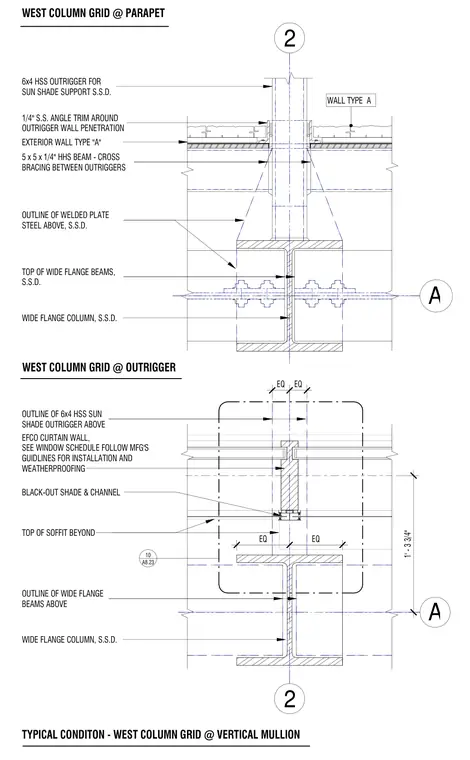

These architectural details show framing conditions at the west column grid, including a sun shade outrigger penetration and a vertical mullion junction. A 6x4 hollow structural section outrigger pierces the exterior wall type A at the parapet level, trimmed with a 1/4-inch stainless steel angle and braced with 5x5x1/4-inch hollow structural section members. Below, an EFCO curtain wall interfaces with a black-out shade and channel, positioned relative to wide flange beams and columns shown with structural steel design notes.
