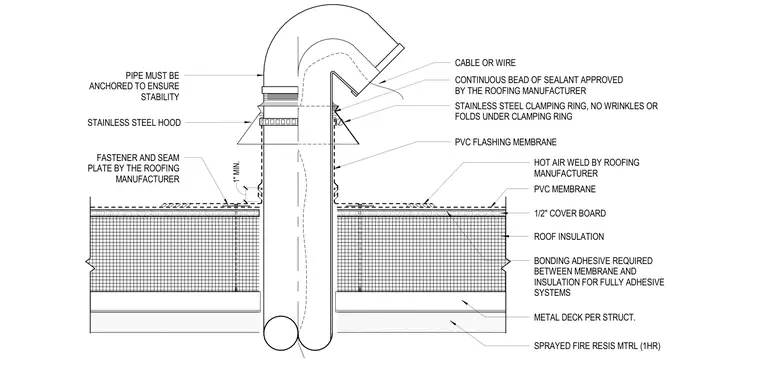

A cable or wire passes through a roof assembly consisting of a structural metal deck sprayed with one-hour fire-resistant material, roof insulation, a half-inch cover board, and a PVC roof membrane fully adhered with bonding adhesive. The penetration is flashed with a PVC membrane hot-air welded to the field membrane and secured at the top with a stainless steel clamping ring over a continuous bead of sealant approved by the roofing manufacturer. A stainless steel hood protects the clamping joint, and the cable or wire pipe requires independent anchoring to ensure stability.
CABLE OR WIRE CONTINUOUS BEAD OF SEALANT APPROVED BY THE ROOFING MANUFACTURER STAINLESS STEEL CLAMPING RING, NO WRINKLES OR FOLDS UNDER CLAMPING RING PVC FLASHING MEMBRANE HOT AIR WELD BY ROOFING MANUFACTURER PVC MEMBRANE ROOF INSULATION 1/2" COVER BOARD METAL DECK PER STRUCT. 1" MIN. FASTENER AND SEAM PLATE BY THE ROOFING MANUFACTURER PIPE MUST BE ANCHORED TO ENSURE STABILITY BONDING ADHESIVE REQUIRED BETWEEN MEMBRANE AND INSULATION FOR FULLY ADHESIVE SYSTEMS STAINLESS STEEL HOOD SPRAYED FIRE RESIS MTRL (1HR)
