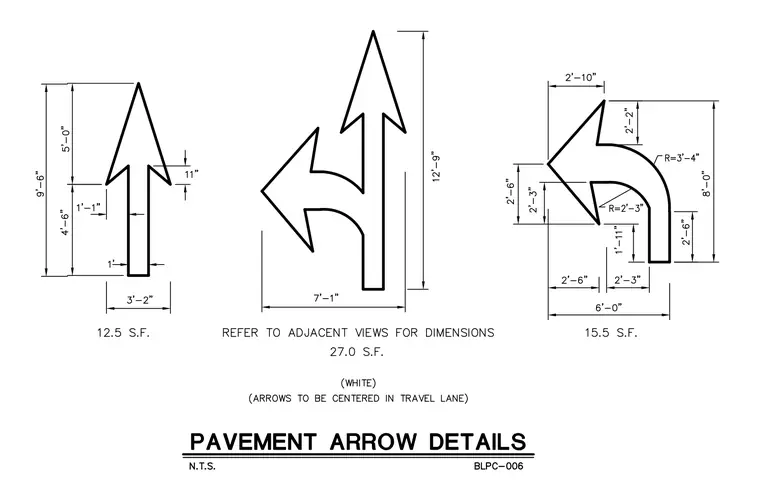

These pavement arrow details outline the geometric dimensions and square footage requirements for white traffic markings applied to site paving. The straight arrow measures nine feet six inches in total length with a shaft width of one foot, an arrowhead length of five feet, and an area of twelve point five square feet. The combined straight and left-turn arrow spans twelve feet nine inches in overall length with a total width of seven feet one inch, and covers twenty-seven square feet. The curved left-turn arrow utilizes specified radii of two feet three inches and three feet four inches, standing eight feet tall with a total width of six feet, and requires fifteen point five square feet of coverage. All arrows are specified in white paint and must be centered within the travel lane.
