A one and one-quarter inch diameter grab bar attaches to metal studs with a concealed mounting flange. A heavy duty backing plate spans between the studs, secured with two number fourteen by two inch stainless steel screws per stud. Interior finishes such as cement board occur at tile locations. The installed grab bar maintains a one and one-half inch clearance from the wall in compliance with accessibility standards.

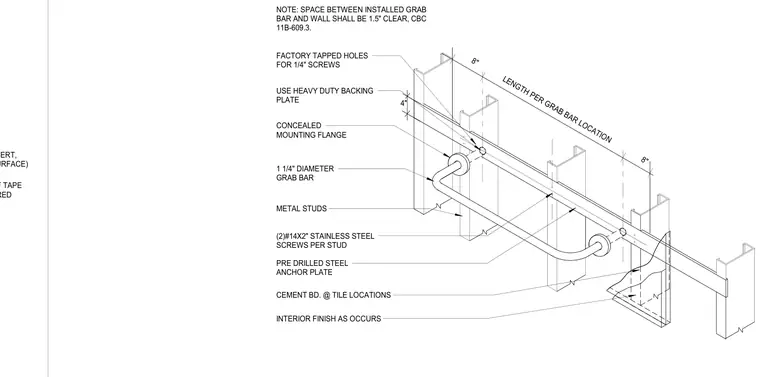

ATTACH TO WALL W/ D/F TAPE OR SILICONE AS REQUIRED 1/8" CHROME METAL INSERT, W.O. (FLUSH W/ SIGN SURFACE) 8" LENGTH PER GRAB BAR LOCATION 8" 4" INTERIOR FINISH AS OCCURS CEMENT BD. @ TILE LOCATIONS PRE DRILLED STEEL ANCHOR PLATE (2)#14X2" STAINLESS STEEL SCREWS PER STUD METAL STUDS 1 1/4" DIAMETER GRAB BAR CONCEALED MOUNTING FLANGE FACTORY TAPPED HOLES FOR 1/4" SCREWS NOTE: SPACE BETWEEN INSTALLED GRAB BAR AND WALL SHALL BE 1.5" CLEAR, CBC 11B-609.3. USE HEAVY DUTY BACKING PLATE
