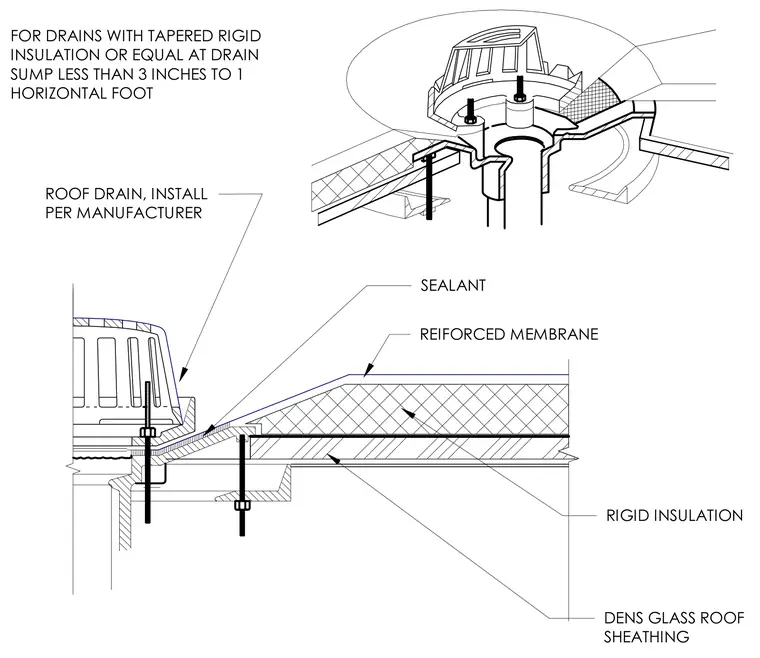

The roof drain assembly is installed per the manufacturer's specifications within a drain sump formed by tapered rigid insulation or equivalent, maintaining a slope of less than 3 inches to 1 horizontal foot. The assembly rests upon dens glass roof sheathing and is surrounded by rigid insulation. A reinforced membrane extends over the insulation to form a continuous waterproof barrier. Sealant is applied around the drain flange and membrane junctions to prevent water infiltration.
DENS GLASS ROOF SHEATHING FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REIFORCED MEMBRANE RIGID INSULATION
