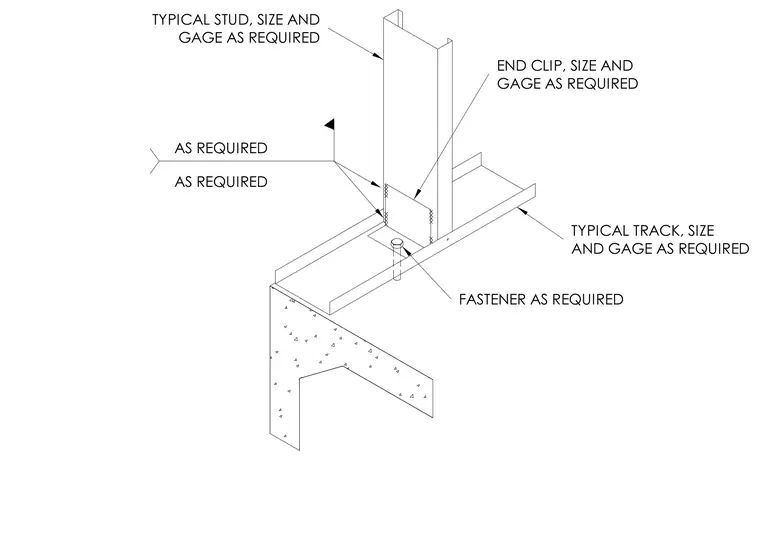

A typical cold-formed metal stud connects to a continuous track anchored to a concrete slab or foundation. An end clip fastens the stud web to the track flange using specified fasteners. A concrete anchor secures the track assembly as required by structural design.
AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED
