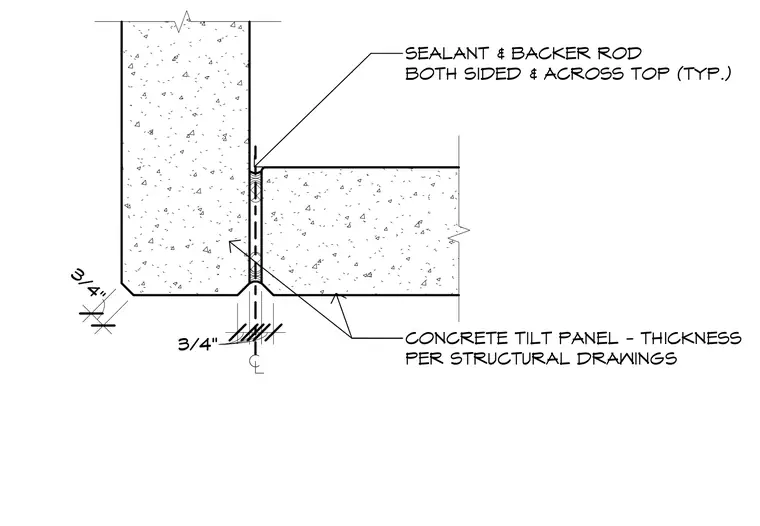

Two concrete tilt-up panels form a corner butt joint with a three-quarter-inch joint width. Sealant and backer rod are applied on both sides and across the top of the joint. Panel thickness is specified per structural drawings.
3/4" 3/4" 3/4" 3/4" 3/4" SEALANT & BACKER ROD BOTH SIDED & ACROSS TOP (TYP.) CONCRETE TILT PANEL - THICKNESS PER STRUCTURAL DRAWINGS
