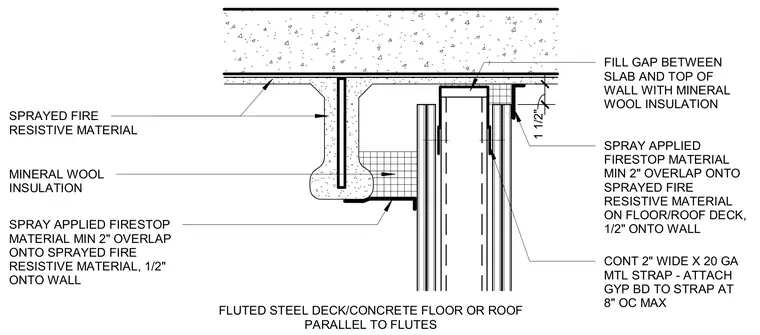

A two-hour fire-rated wall terminates below a fluted steel deck and concrete floor or roof slab running parallel to the flutes. The gap between the top of the wall and the slab is filled with mineral wool insulation. Spray-applied firestop material covers the joint, overlapping a minimum of two inches onto the sprayed fire-resistive material on the deck and one-half inch onto the wall. A continuous two-inch wide by twenty gauge metal strap ties the gypsum board to the framing at a maximum spacing of eight inches on center with a one-and-one-half inch clearance.
FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES SPRAYED FIRE RESISTIVE MATERIAL FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION MINERAL WOOL INSULATION SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL, 1/2" ONTO WALL SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL ON FLOOR/ROOF DECK, 1/2" ONTO WALL CONT 2" WIDE X 20 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX 1 1/2"
