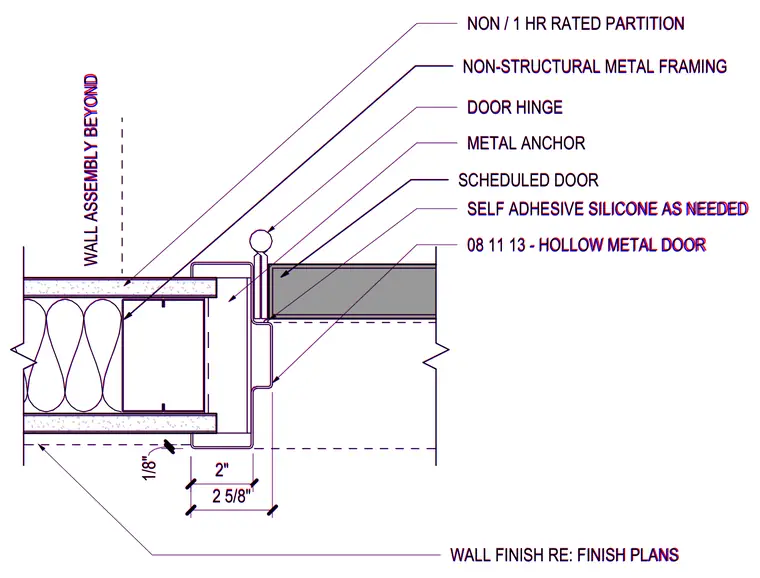

A hollow metal door frame connects to a non-structural metal framing partition with a one-hour fire rating, secured by metal anchors spaced at two inches and two and five-eighths inches. A scheduled hollow metal door hangs from a door hinge mounted to the frame, cushioned by self-adhesive silicone applied as needed. Wall finishes measure one-eighth inch thick and align with finish schedules, adjacent to a wall assembly beyond the frame.
NON-STRUCTURAL METAL FRAMING NON / 1 HR RATED PARTITION METAL ANCHOR 2" 2 5/8" 08 11 13 - HOLLOW METAL DOOR 1/8" WALL FINISH RE: FINISH PLANS SCHEDULED DOOR WALL ASSEMBLY BEYOND DOOR HINGE SELF ADHESIVE SILICONE AS NEEDED NON-STRUCTURAL METAL FRAMING NON / 1 HR RATED PARTITION METAL ANCHOR 2" 2 5/8" 08 11 13 - HOLLOW METAL DOOR 1/8" WALL FINISH RE: FINISH PLANS SCHEDULED DOOR WALL ASSEMBLY BEYOND DOOR HINGE SELF ADHESIVE SILICONE AS NEEDED
