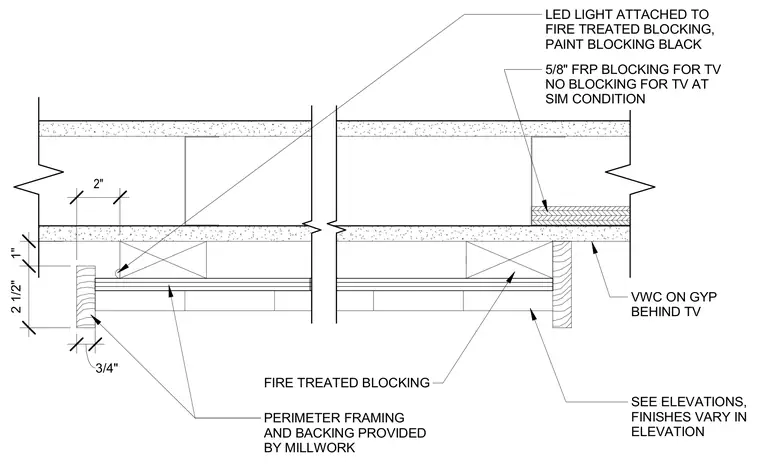

This interior wall detail shows wood framing and fire-treated blocking configured to support a television mount and perimeter millwork. The assembly includes 5/8-inch FRP backing for television mounting behind gypsum wallboard with vinyl wall covering. An LED light fixture attaches directly to the fire-treated blocking with the surrounding blocking painted black. Additional perimeter framing and backing components are provided by the millwork contractor.
LED LIGHT ATTACHED TO FIRE TREATED BLOCKING, PAINT BLOCKING BLACK 2 1/2" 1" 3/4" 2" PERIMETER FRAMING AND BACKING PROVIDED BY MILLWORK VWC ON GYP BEHIND TV FIRE TREATED BLOCKING 5/8" FRP BLOCKING FOR TV NO BLOCKING FOR TV AT SIM CONDITION SEE ELEVATIONS, FINISHES VARY IN ELEVATION
