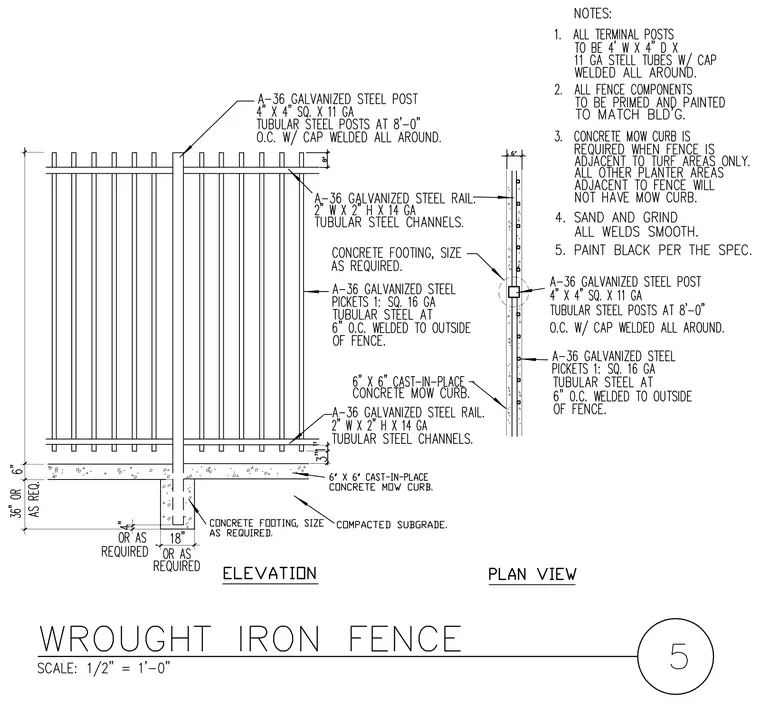

A-36 galvanized steel posts measuring 4 inches by 4 inches by 11 gauge are spaced at eight feet on center with welded caps, anchored into cast-in-place concrete footings sized as required with an 18 inch width and 36 inch depth. Two-inch by two-inch by 14-gauge tubular steel channels serve as top and bottom rails, welded to the posts. Square 16-gauge tubular steel pickets are spaced at six inches on center and welded to the outside of the fence rails. A six-inch by six-inch cast-in-place concrete mow curb is provided at turf areas. All fence components are primed and painted to match the building, with welds ground smooth.
