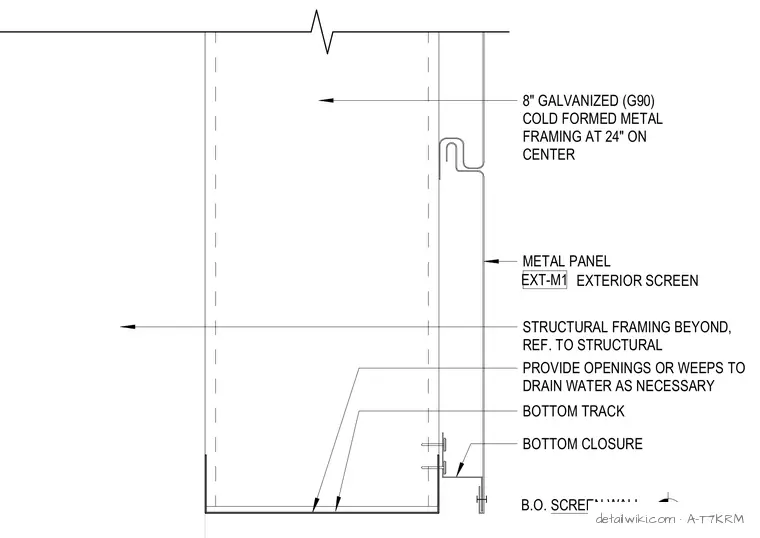

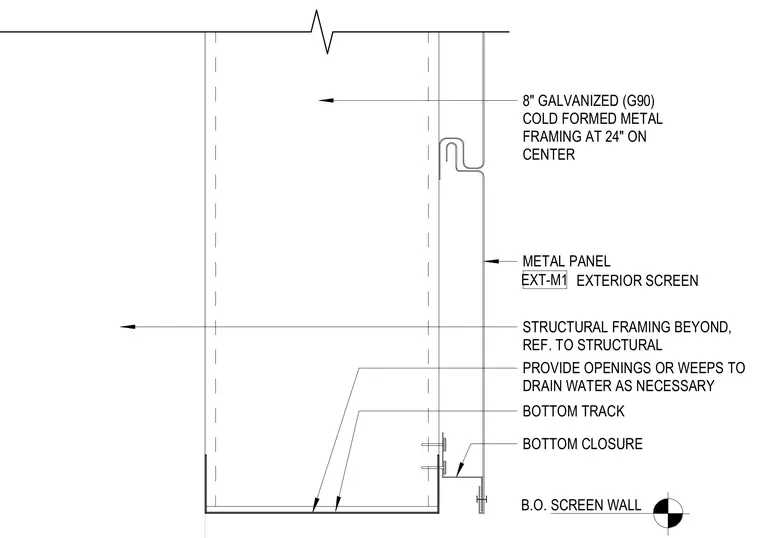

This assembly consists of eight-inch galvanized G90 cold-formed metal framing spaced at twenty-four inches on center, which supports the exterior screen wall. An exterior metal panel, designated EXT-M1, is fastened to the framing. A bottom closure flashing is installed at the base of the screen wall to terminate the panel system. Openings or weeps are provided at the bottom closure to facilitate necessary water drainage. Structural framing beyond is referenced to the structural drawings for support requirements.
Text on the drawing
BOTTOM CLOSURE METAL PANEL EXTERIOR SCREEN EXT-M1 8" GALVANIZED (G90) COLD FORMED METAL FRAMING AT 24" ON CENTER BOTTOM TRACK STRUCTURAL FRAMING BEYOND, REF. TO STRUCTURAL B.O. SCREEN WALL PROVIDE OPENINGS OR WEEPS TO DRAIN WATER AS NECESSARY
