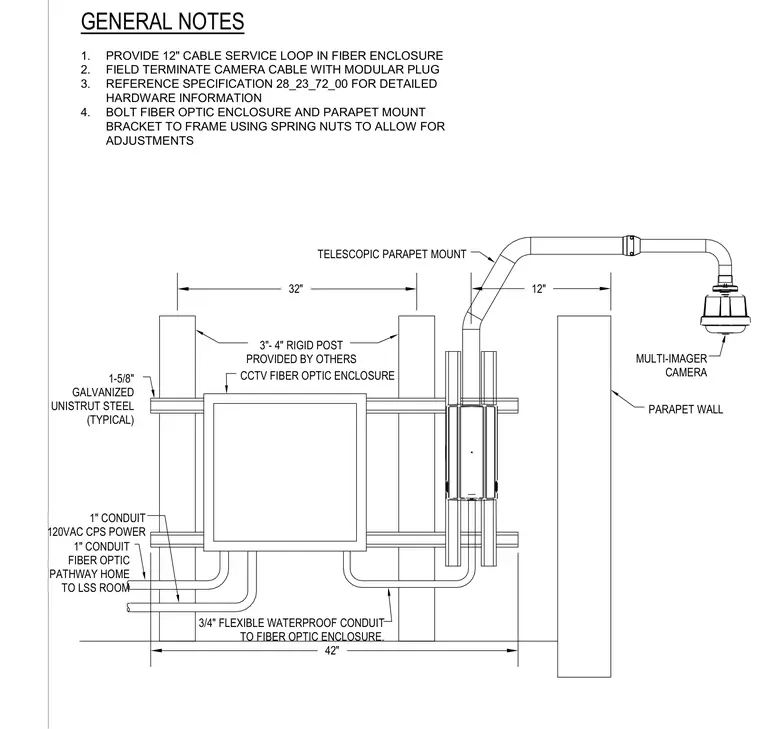

An outdoor PTZ or multi-imager camera mounts to a telescopic parapet bracket attached to structural steel framing. The assembly features a CCTV fiber optic enclosure bolted to a framework of 1-5/8 inch galvanized Unistrut steel using spring nuts for adjustability. A 3/4 inch flexible waterproof conduit connects to the fiber optic enclosure, while 1 inch conduits provide 120VAC power and a fiber optic pathway. A 12 inch cable service loop is provided within the fiber enclosure, and the camera cable is field terminated with a modular plug.
42" 12" 32" 1. PROVIDE 12" CABLE SERVICE LOOP IN FIBER ENCLOSURE 2. FIELD TERMINATE CAMERA CABLE WITH MODULAR PLUG 3. REFERENCE SPECIFICATION 28_23_72_00 FOR DETAILED HARDWARE INFORMATION 4. BOLT FIBER OPTIC ENCLOSURE AND PARAPET MOUNT BRACKET TO FRAME USING SPRING NUTS TO ALLOW FOR ADJUSTMENTS GENERAL NOTES PARAPET WALL TELESCOPIC PARAPET MOUNT MULTI-IMAGER CAMERA 3/4" FLEXIBLE WATERPROOF CONDUIT TO FIBER OPTIC ENCLOSURE. CCTV FIBER OPTIC ENCLOSURE 3"- 4" RIGID POST PROVIDED BY OTHERS 1-5/8" GALVANIZED UNISTRUT STEEL (TYPICAL) 1" CONDUIT FIBER OPTIC PATHWAY HOME TO LSS ROOM 1" CONDUIT 120VAC CPS POWER
