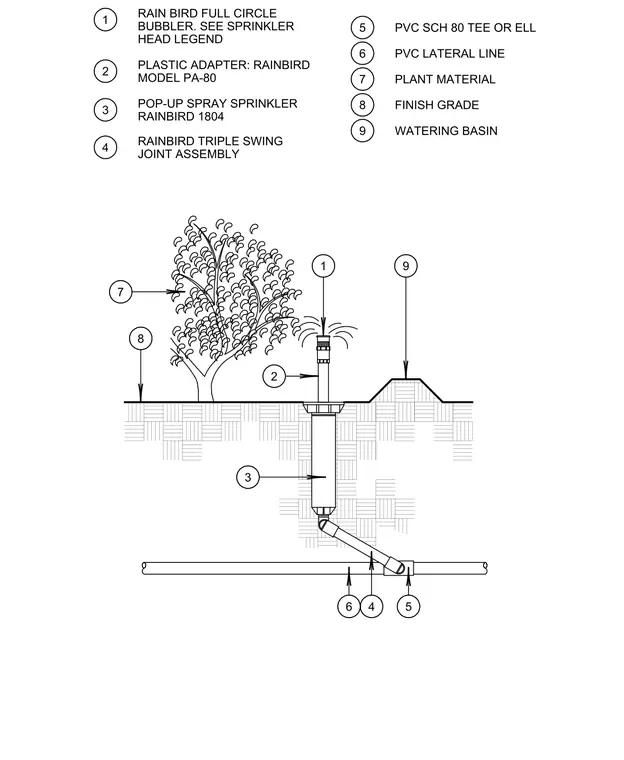

A Rain Bird full-circle bubbler connects to a plastic adapter model PA-80 and a pop-up spray sprinkler model Rain Bird 1804. The sprinkler body links to a PVC schedule eighty tee or ell via a Rain Bird triple swing joint assembly. The lateral line consists of PVC piping buried below finish grade adjacent to plant material and a watering basin.
1 2 RAIN BIRD FULL CIRCLE BUBBLER. SEE SPRINKLER HEAD LEGEND PLASTIC ADAPTER: RAINBIRD MODEL PA-80 POP-UP SPRAY SPRINKLER RAINBIRD 1804 RAINBIRD TRIPLE SWING JOINT ASSEMBLY PVC SCH 80 TEE OR ELL PVC LATERAL LINE PLANT MATERIAL FINISH GRADE WATERING BASIN 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
