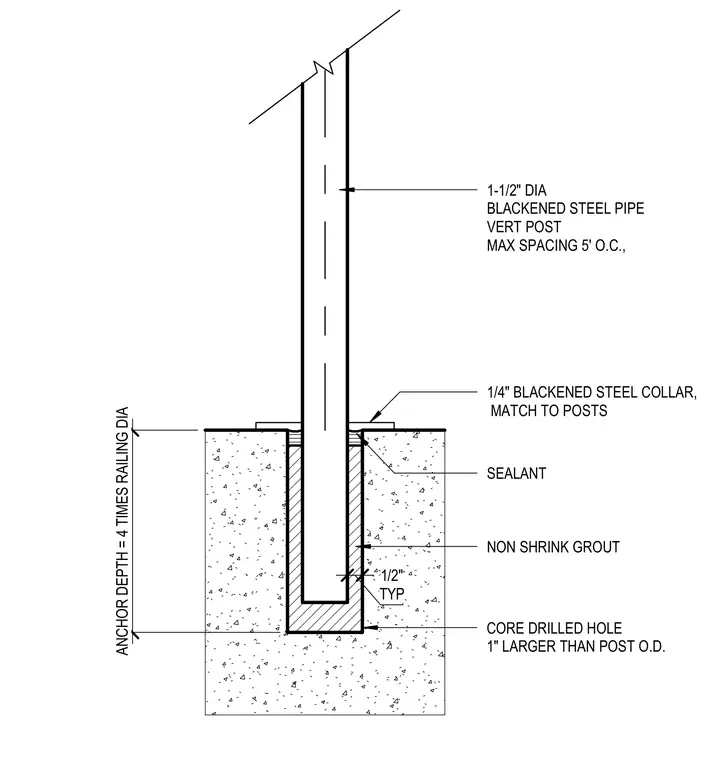

A 1-1/2 inch diameter blackened steel pipe vertical post is set into a core-drilled hole in a concrete slab or wall. The core-drilled hole is 1 inch larger than the post outer diameter to accommodate non-shrink grout. The anchor depth is four times the railing diameter. A 1/4 inch blackened steel collar matching the posts sits at the surface over a bead of sealant.
1-1/2" DIA BLACKENED STEEL PIPE VERT POST MAX SPACING 5' O.C., 1/4" BLACKENED STEEL COLLAR, MATCH TO POSTS SEALANT NON SHRINK GROUT CORE DRILLED HOLE 1" LARGER THAN POST O.D. ANCHOR DEPTH = 4 TIMES RAILING DIA TYP 1/2"
