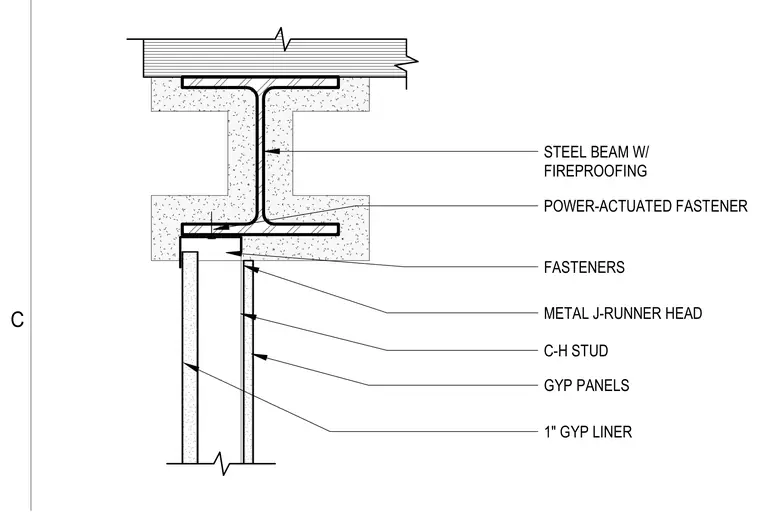

A metal J-runner head is fastened to the underside of a fireproofed steel beam using power-actuated fasteners. C-H studs and gypsum panels frame into the runner, supplemented by a one-inch gypsum liner.
METAL J-RUNNER HEAD 1" GYP LINER GYP PANELS C-H STUD FASTENERS POWER-ACTUATED FASTENER STEEL BEAM W/ FIREPROOFING C
