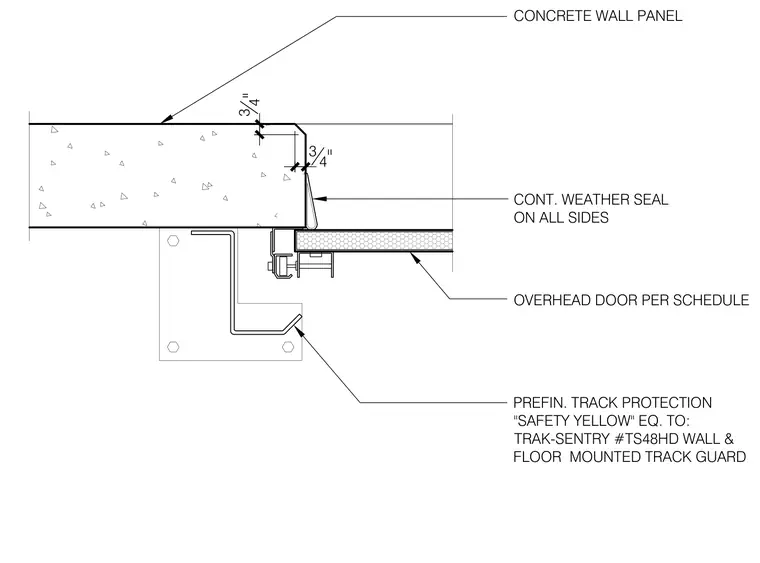

An overhead door per schedule is mounted against a concrete wall panel with a continuous weather seal on all sides. A prefinished track protection safety yellow wall and floor mounted track guard is bolted adjacent to the door track assembly. Dimensions of three-quarters of an inch indicate the clearances and reveals at the concrete wall jamb.
OVERHEAD DOOR PER SCHEDULE CONT. WEATHER SEAL ON ALL SIDES CONCRETE WALL PANEL 3 4 " 3 4 " PREFIN. TRACK PROTECTION "SAFETY YELLOW" EQ. TO: TRAK-SENTRY #TS48HD WALL & FLOOR MOUNTED TRACK GUARD
