Text on the drawing

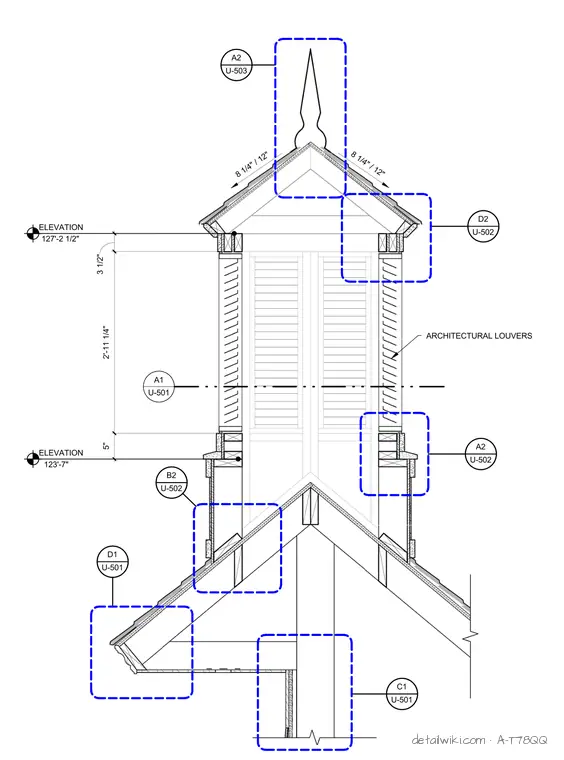

A1 U-501 U-501 D1 U-502 B2 U-502 A2 U-502 D2 U-501 C1 U-503 A2 ELEVATION 123'-7" ELEVATION 127'-2 1/2" 5" 2'-11 1/4" 3 1/2" 8 1/4" / 12" 8 1/4" / 12" ARCHITECTURAL LOUVERS
